Inward Opening Window Hardware control system

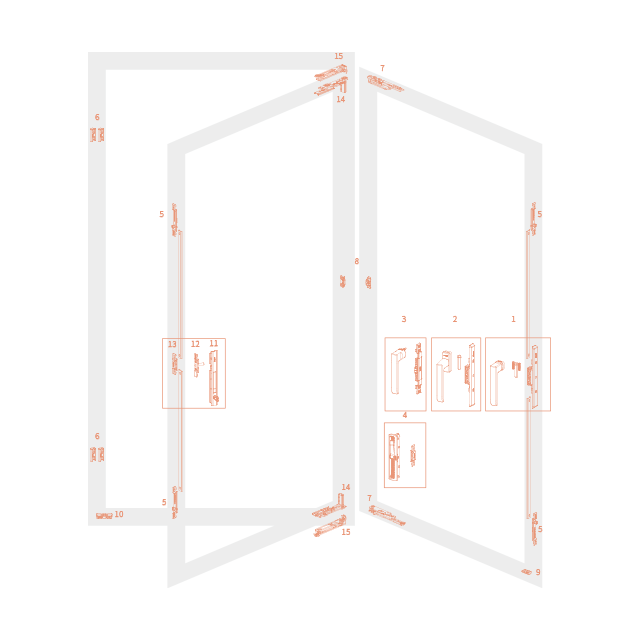

| No. | Product | Product Type | Product Code | Q'ty | Unit | Note |
| 1 | Handle and its transmission components | Handle with base | PH937.00.168WA5 | 1 | pc | Antibacterial sand-grain black, optional silver |
| SP07 Spindle | SP07.12.25C021X | 1 | pc | Handle with base, optional | ||
Multi-functional transmission gear case | AGC37.13.066WA5 | 1 | pc | 13mm center distance, other specifications of center distance optional | ||
| 2 | Rosette Free Window Handle | PH307.00.1T168WA3 | 1 | pc | Antibacterial sand-grain black,optional silver, bronze | |
| SP07 Spindle | SP07.07.2T26C021X | 1 | pc | Rosette Free Window Handle | ||
Multi-functional transmission gear case | AGC37.13.066WA5 | 1 | pc | 13mm center distance, other specifications of center distance optional | ||
| 3 | Spindle Handle | PH402.00.168WA2 | 1 | pc | Antibacterial sand-grain black, optional silver, bronze | |
Non-milled groove transmission Case | AGC50.00.031WA4 | 1 | pc | Optional eccentric shaft handle | ||
| 4 | Side Handle for Narrow Sliding | AH200.20.168WA4 | 1 | pc | Antibacterial sand-grain black | |
| Transfer Rod | APT20.00.031WA4 | 1 | pc | Optional narrow side handle | ||
| 5 | Locking bar | Safety locking bar | ALR28.00.031WA4 | 2 | pc | Extendable multi-point locking solution, quantity can be increased based on sash height |
| 6 | Locking plate | C-groove safety lock keeper | ALP13.00.031WA4 | 2 | pc | European standard C-groove, quantity can be increased based on sash height |

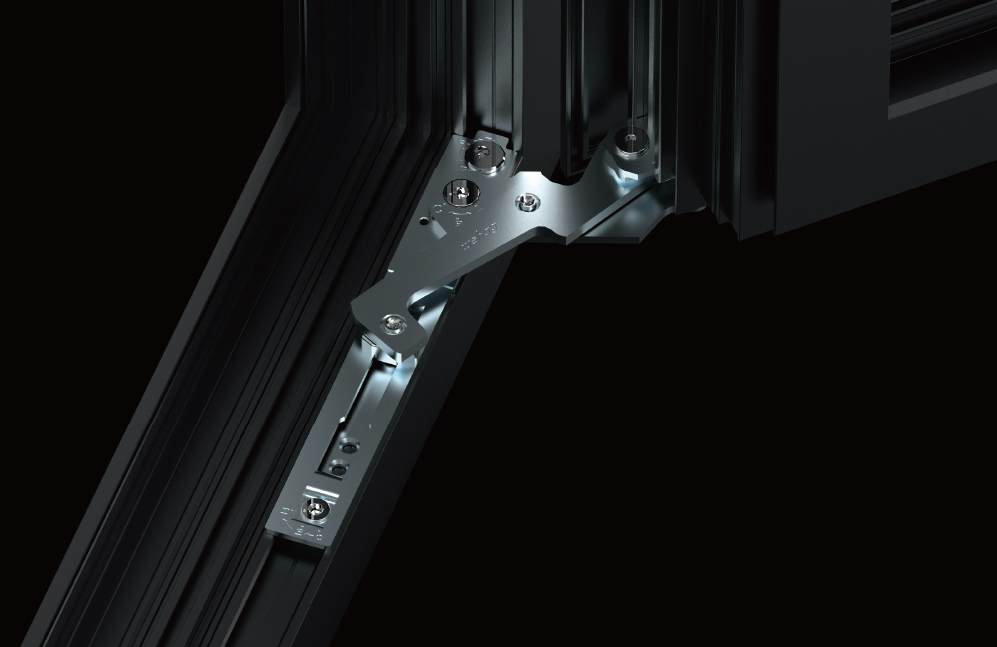

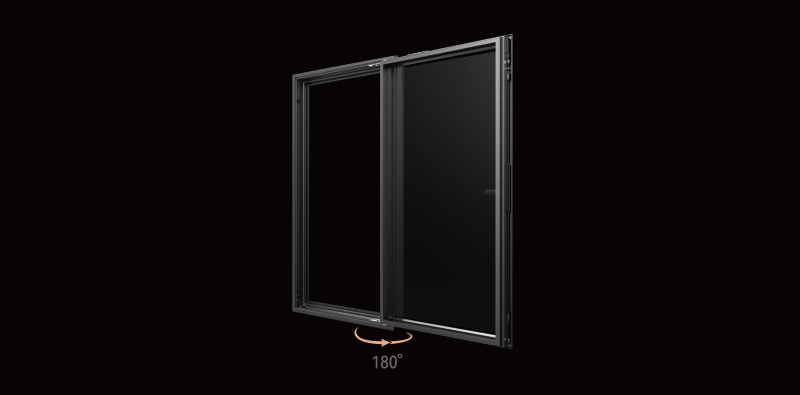

| 7 | Hinge | 180-degree inward-opening hinge | CATH51.00.38WA5 | 1 | pc | Load-bearing 100kg, opening angle 180 degrees, suitable for sash width: 200-1300mm, sash height: 550-2800mm |
| 8 | Optiona accessories | C-groove adjustable center lock | ALP15.00.031WA4 | 1 | pc | As needed, for sash height exceeding 1200mm, it is recommended to add a center lock solution |

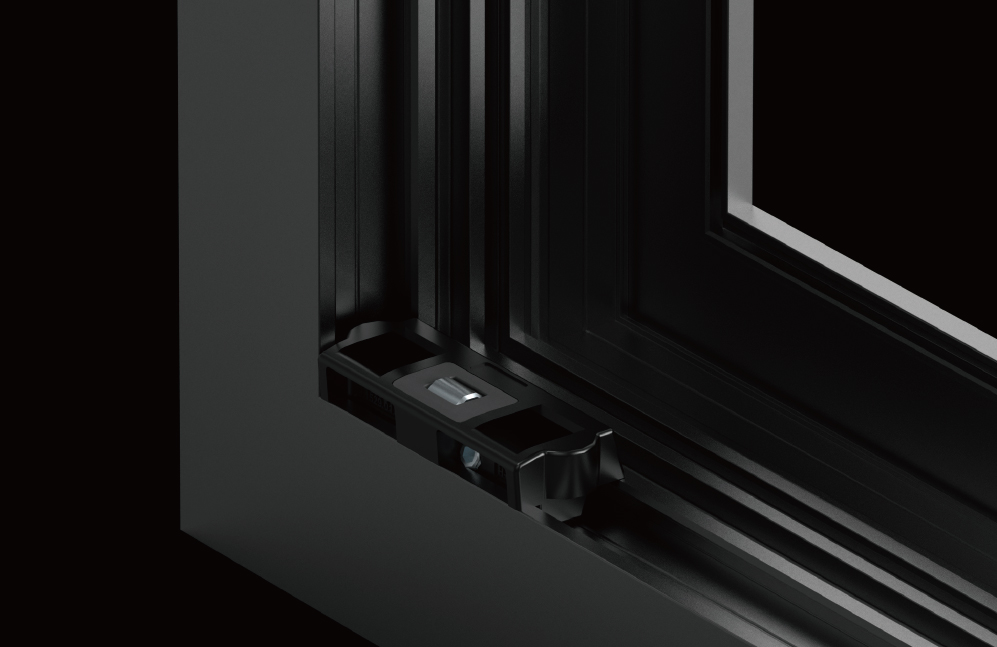

| 9 | Anti-sink blocks | AAS10.00.06WA4 | 1 | pc | Choose the anti-sink combination as needed | |
| 10 | C-groove reverse support base | ASP20.00.031X | 1 | pc | / | |
| 11 | Handle | 500MA Handle | MAL500.021.168WA5 | 1 | pc | Antibacterial sand-grain black, optional silver, bronze |
| 12 | Transmission Components | Heavy Duty T-Type Connector | TTC31.23.069X | 1 | pc | Used when the handle is installed in the upright position |
| 13 | Transfer Rod | APT20.00.031WA4 | 1 | pc | Used when the handle is installed on the side | |
| 14 | Locking bar | ALR28 Security Locking Rod | ALR28.00.031WA4 | 2 | pc | / |
| 15 | Lock plate | C-groove safety lock keeper | ALP13.00.031WA4 | 2 | pc | European standard C-groove |
| 16 | Hinge | Frame and sash flush light-duty hinge | CATH21.00.38WA1 | 1 | choose | European standard C-groove, 25kg, 90degrees |
| 17 | Frame and sash flush 180-degree light-duty hinge | CATH24.00.1T38WA5 | 0 | choose | European standard C-groove, 15kg, 180degrees |
Sash Width：
200mm-1300mm
Sash Height：
450mm-2800mm
Max. Sash Weight：
100KG
