Concealed Hinge Tilt-turn Window (Euro-standard) Hardware control system
| No. | Product Name | Product Type | Product Code | Q'ty | Unit | Note |

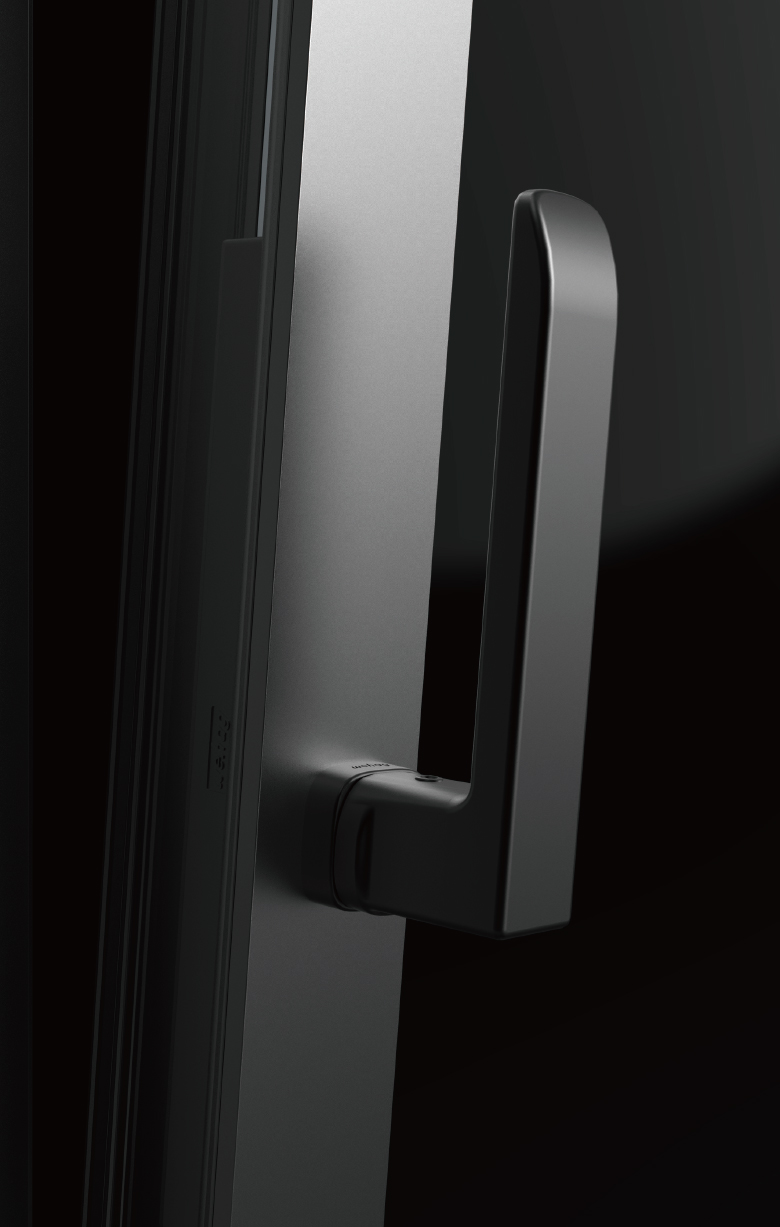

| 1 | Handle and other transmission components | Handle with base | PH937.00.168WA5 | 1 | pc | Antibacterial sand-grain black, optional silver |
| SP07 Spindle | SP07.12.25C021X | 1 | pc | Handle with base, optional | ||
| Gear Case | AGC50.13.06WA4 | 1 | pc | 13mm center distance, other specifications of center distance optional | ||
| 2 | Rosette Free Window Handle | PH307.00.1T168WA3 | 1 | pc | Antibacterial sand-grain black, optional silver, bronze | |
| SP07 Spindle | SP07.07.2T26C021X | 1 | pc | Rosette Free Window Handle | ||
| Transmission casing | AGC50.13.06WA4 | 1 | pc | 13mm center distance,other specifications of center distance optional | ||
| 3 | Spindle Handle | PH402.00.168WA2 | 1 | pc | Antibacterial sand-grain black,optional silver, bronze | |
| Non-milled groove transmission Case | AGC50.00.031WA4 | 1 | pc | Fork Handle | ||
| 4 | Side Handle for Narrow Sliding | AH200.17.168WA4 | 1 | pc | Antibacterial sand-grain black | |
| Conversion Rod | APT20.00.031WA4 | 1 | set | Narrow side handle option parts | ||
| 5 | Transmission 6 Components | Transmission Components (Pro) | AD21.00.031WA4 | 1 | set | Micro-adjustment Transmission Component |
| 6 | Small groove transmission component | AD23.00.031WA4 | 1 | set | Compatible with 180-degree micro-adjustableinternal opening and tilting,10-14 small groove options are available | |

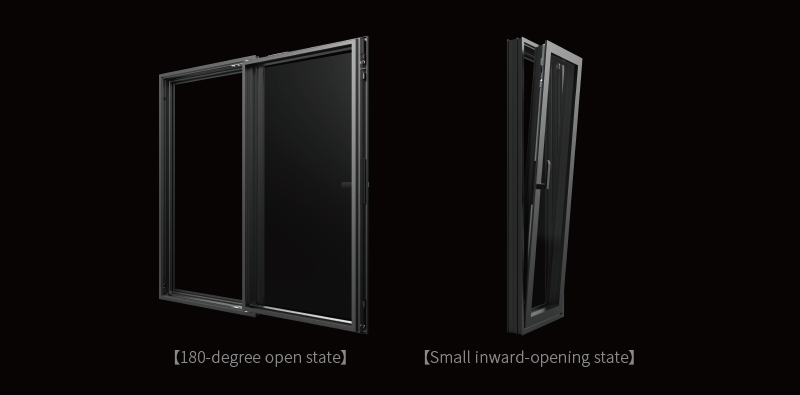

| 7 | Hinge Component | C-profile 180-degree internal opening and tilting hinge (left) | CATT55.20.38LWA5 | 1 | set | European standard C groove micro-adjustment,180-degree internal opening and tilting solution.Supports 100kg, with a sash width of 480-1000mm and a sash height of 595-2600mm. |
| C-profile 180-degree internal opening and tilting hinge (right) | CATT55.20.38RWA5 | 1 | set | |||
| 8 | Hinge component left (Pro) | CATT51.35.P1T38LWA5 | 1 | set | Micro-adjustment 90-degree internal opening and tilting solution. Supports 100kg,with a sash width of 475-1000mm and a sash height of 595-2600mm | |
| Hinge component right (Pro) | CATT51.35.P1T38RWA5 | 1 | set | |||
| 9 | Small arm hinge set for tilt-turn (left) | CATT51.30.1T031LX | 1 | set | European standard C-slot small rocker arm inward opening and tilting solution. Supports 90 degrees,with a load capacity of 80kg, sash width of 370-510mm,and sash height of 595-2600mm | |
| Small arm hinge set for tilt-turn (right) | CATT51.30.1T031RX | 1 | set | |||
| 10 | Optional accessories | Middle lock corner transmission | AMCT20.00.031WA4 | 1 | pc | European standard C-slot inward opening and tilting hinge side middle lock solution:When the sash width exceeds 800mm and the sash height exceeds 1200mm, it is recommended to add a middle lock to enhance safety,locking force, and sealing |
| 11 | ALR28 Rolling Locking Rod | ALR28.65.031WA4 | 1 | pc | ||
| 12 | C Groove Locking Plate | ALP10.00.031WA4 | 1 | pc | ||
| 13 | Inward opening and tilt-turn sealing components | AB200.00.031X | 1 | pc | European C-slot, 90-degree PRO inward opening and tilting optional configuration,choose between the middle lock solution | |
| 14 | C Groove Open Stay | ATR20.09C38WA51 | 1 | pc | Suggest adjustable Open Stay,recommend standard configuration for 90-degree inward opening and tilting |
