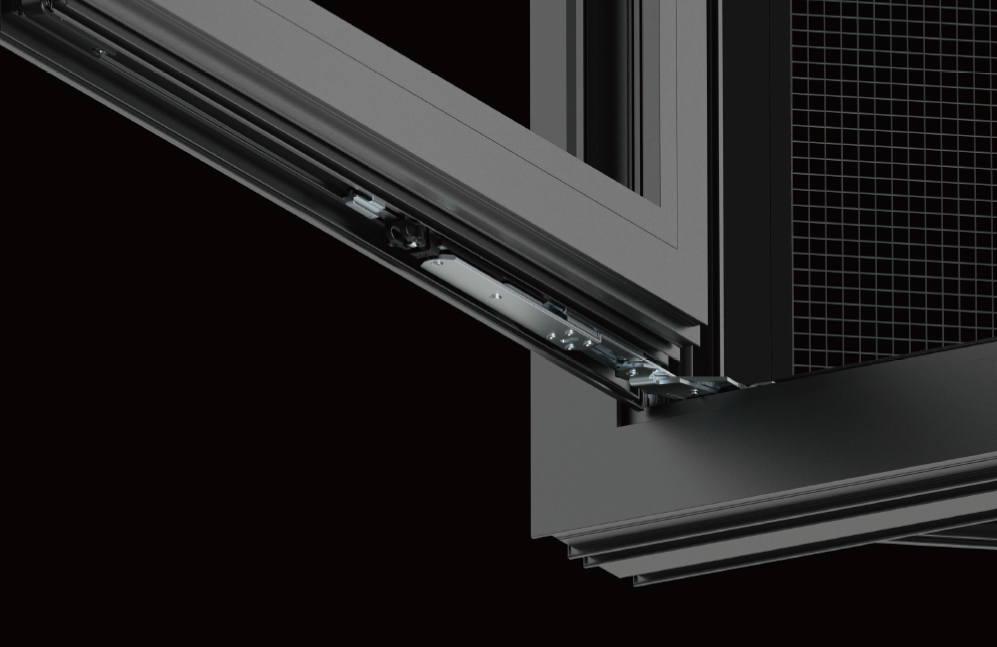

Outward Opening& Awning Window With Integrated Screen Mesh Hardware control system
Outward Opening& Awning Window With Integrated Screen Mesh Hardware control system
Technical Achievements

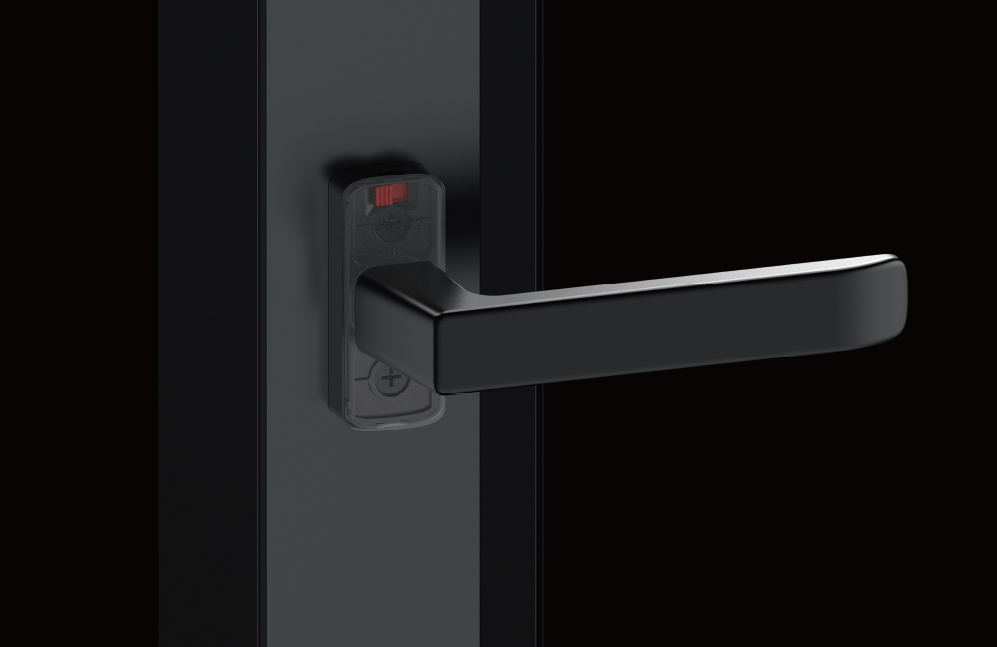

99.99% safe antibacterial handle
99.99% safe antibacterial handle

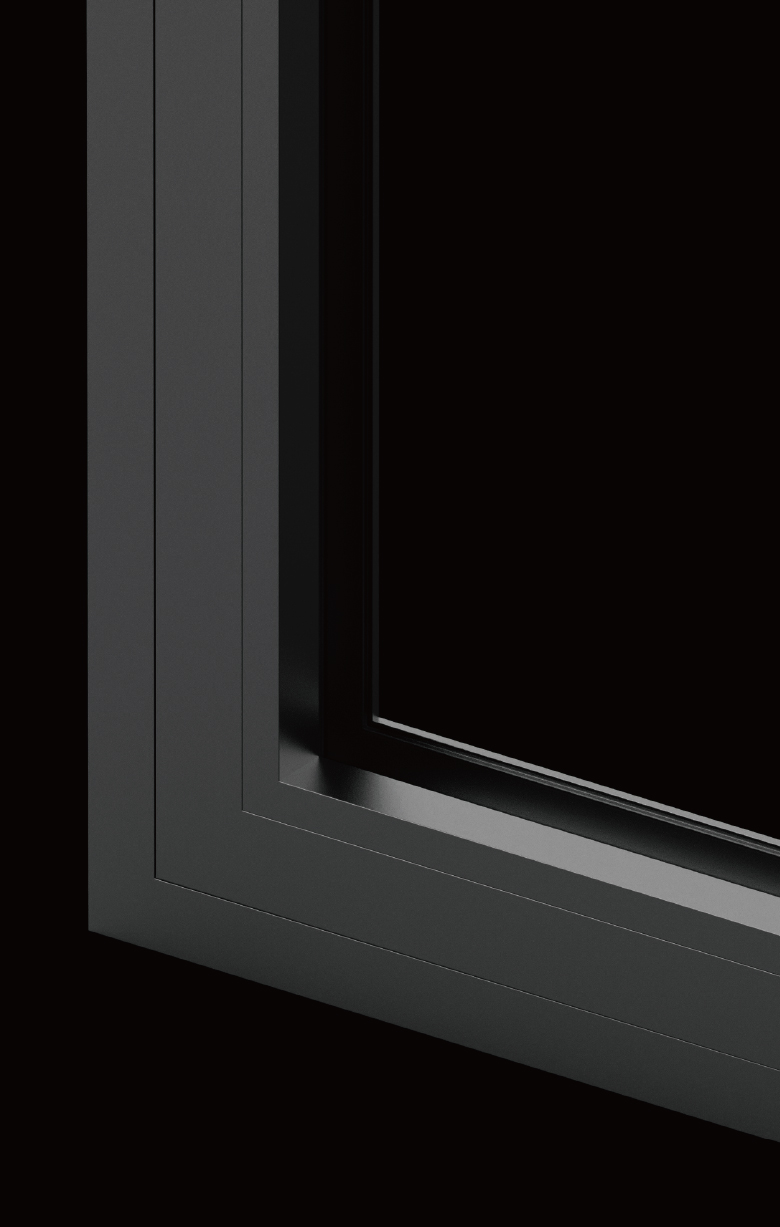

Anti-corrosion material
Anti-corrosion material

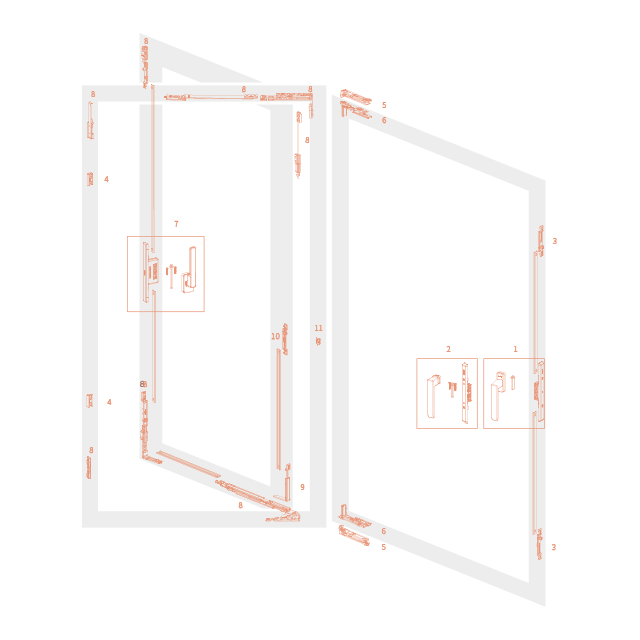

Configuration Scheme
Product NameNo.Product TypeProduct CodeQ'tyUnitNote
Inward opening screen sashHandle and  transmission1Handle with basePH937.00.168WA51pcAvailable in silver, black
Square SpindleSP07.12.26C021X1pc/
2Handle without basePH307.00.1T168WA31pcAvailable in silver, black, bronze
Square SpindleSP07.07.2T26C021X1pc/
Gear Case3
Gear CaseAGC37.10.066WA51pcBacksrt: 10.5mm
Locking Rod4Locking RodALR28.00.031WA42pc/
Locking Plate5Locking PlateALP13.00.031WA42pcEuropean standard C groove
Hinge6Frame sash flush 180 degree lightweight hingeCATH24.00.1T38WA51setBearing capacity: 15kg，Opening angle: 180°
7Frame sash flush lightweight hingesCATH21.00.38WA11setBearing capacity: 25KG，Bearing capacity:90°
Outward opening glass sashHandle8PH924 HandlePH924.00.168WA51pcAvailable in silver, black; Height: 27mm
PH939 HandlePH939.00.168WA51pcAvailable in silver, black; Height: 34.5mm
Square SpindleSP07.07.60C021X1pc/
Gear CaseGear CaseAGC50.26.06WA41pcBackset: 26mm
Gear CaseAGC50.30.06WA41pcBackset: 30mm
Gear CaseAGC50.37.031WA41pcBackset: 37mm，Suitable for use with base handle
Hinge9

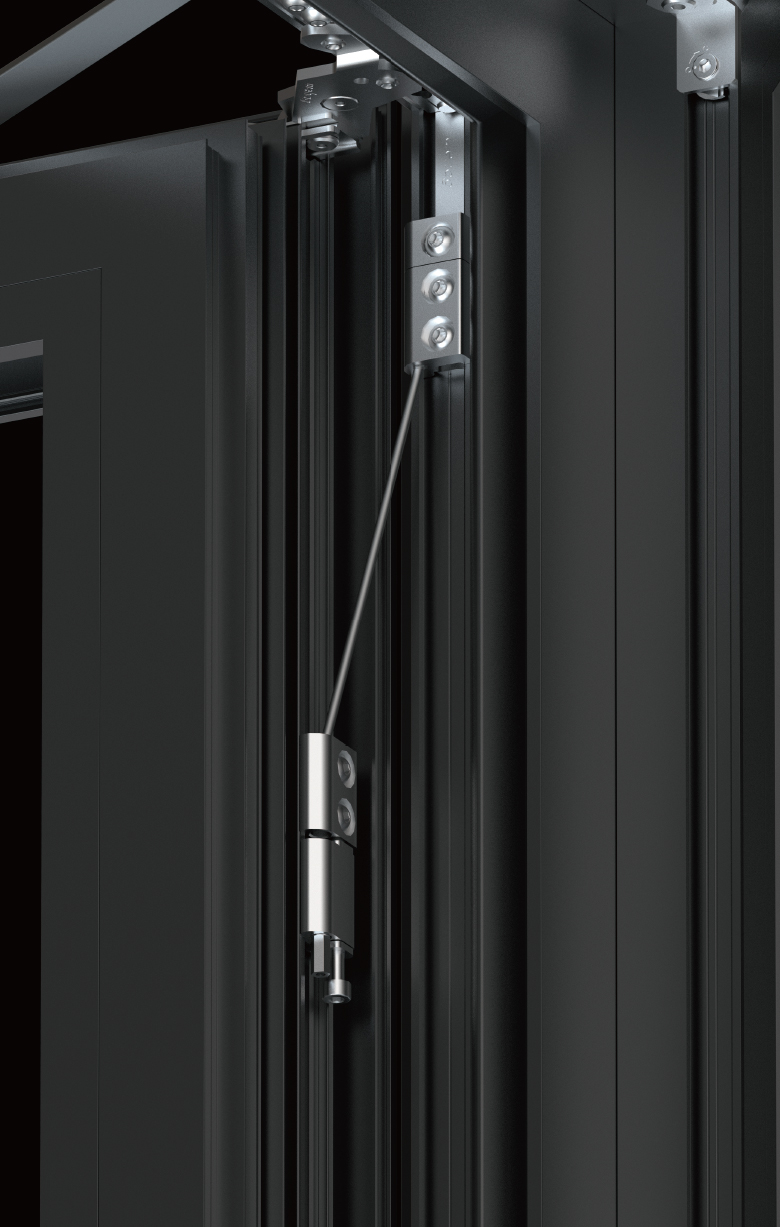

C Groove Outward Opening & Awning Set (Left)CTA80.20.38LWA51setOpening angle: 80°，Bearing capacity: 80kg，SW：510-900mm，SH：665-2000mm
C Groove Outward Opening & Awning Set (Right)CTA80.20.38RWA51set

Optional Accessories		10Middle-Lock Corner-TransmissionAMCT10.00.031WA41pcWhen the SW over 800mm and SH over 1200mm,recommended to use it
11Locking RodALR28.65.031WA41pc
12C Groove Locking PlateALP10.00.031WA41pc


Specifications

Sash Width：

510mm-900mm

Sash Height：

665mm-2000mm

Max. Sash Weight：

80KG
