Lift-Sliding Door Hardware control system
| No. | Product Name | Product type | Product Code | Q'ty | Unit | Note |

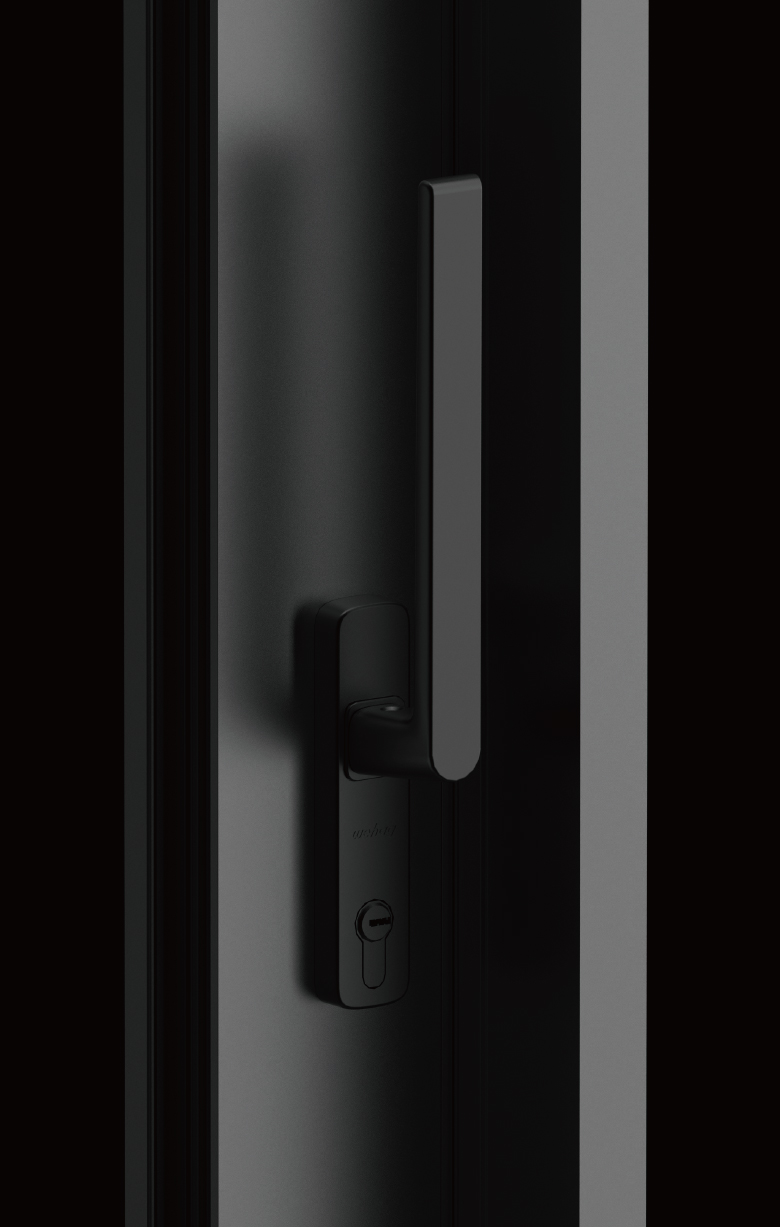

| 1 | Double-Side Handle | Double-Side Handle Set | LSHD707.01.168WA5 | 1 | set | Available in silver, black |
| 2 | Double-Side Handle Set | LSHD707.00.168WA5 | 1 | set | Available in silver, black | |
| 3 | Single-Side Handle | Single-Side Handle Set | LSHS707.00.168WA5 | 1 | set | Available in silver, black |
| 4 | Cylinder | C99 Cylinder | C99.4040C4T029 | 1 | pc | Optional for a double-sided handle assembly with a lock core hole.Not choosing for non-lock-core-hole handle |
| 5 | Gear Case | Gear Case | LSG725.20.069WA5 | 2 | pc | Backset: 37.5mm |
| 6 | Accessories Set | Accessories Set | LSAB70.50.13 | 2 | set | Block height: 13mm，Optional: 16/18/20/21/25mm |
| 7 | Locking Plate | Locking Plate | SLP725.01.384X | 4 | pc | Choose one according to the lock groove |
| Locking Plate | SLP725.02.384X | 4 | pc | |||

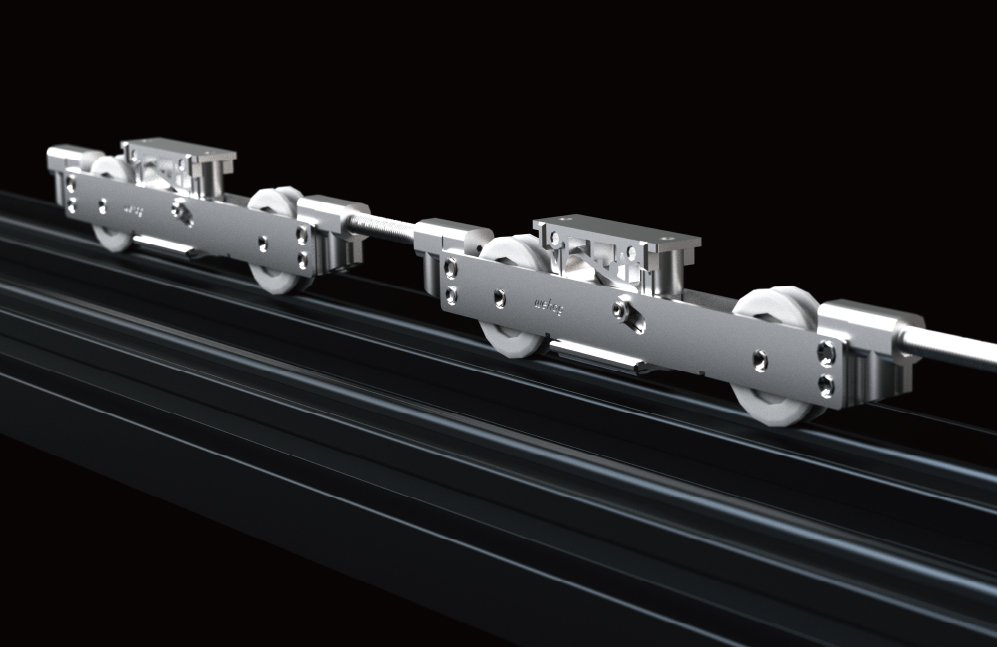

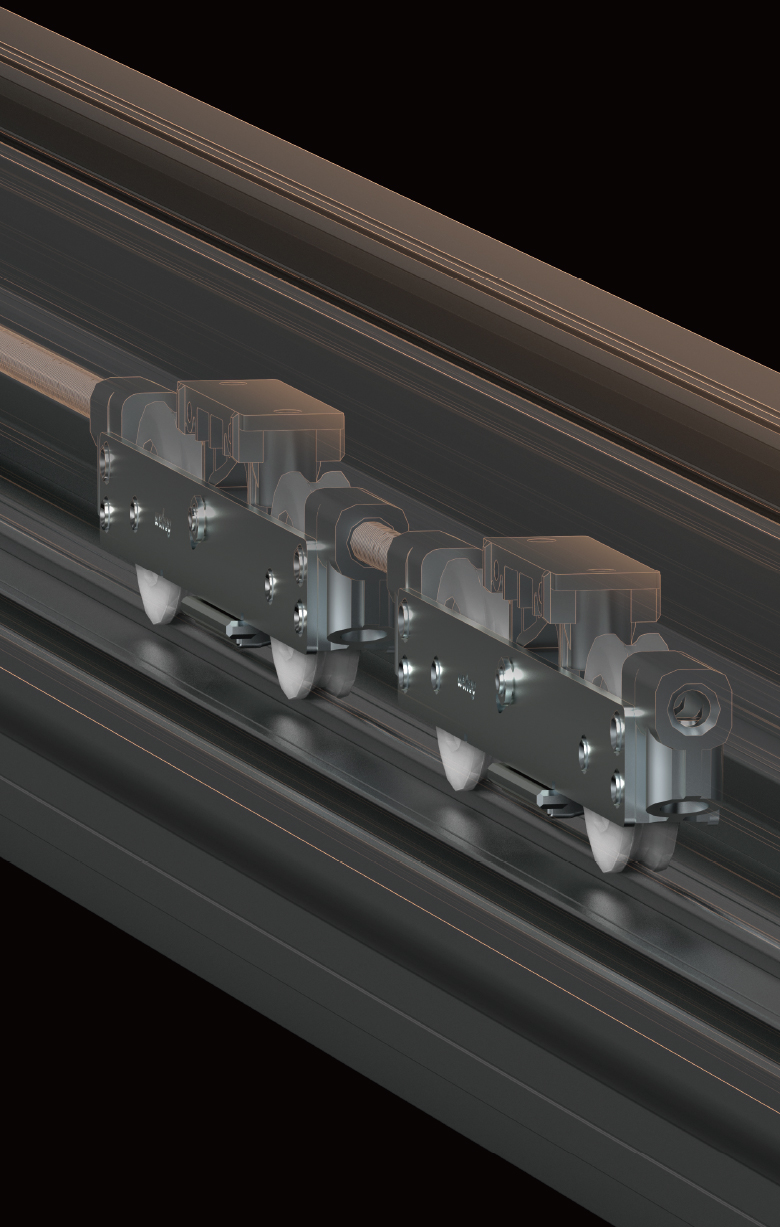

| 8 | Roller | Roller Set | LSBR725.00.1T031WA5 | 2 | set | Bearing capacity: 250KG |
| 9 | Threaded Rod | Threaded Rod | LSS70.10.15C38 | 2 | pc | Length: 1.5m，Optional 1.1m/1.8m/2.0m |
| 10 | Optional Accessories | Auxiliary Roller | LSBR725.31.1T031WA5 | 4 | pc | Bear capacity can up to 400kg by adding additional roller |
Sash Width：
700mm-3300mm
Sash Height：
1600-2800mm
Max. Sash Weight：
250kg
